13:Bravo Turbo Max Console Kit 12 Volt Max 3.6psi

Description

In the KIT version, the inflator is supplied with everything needed for mounting it on the boat (brackets and fixing screws and electric cable with connector).

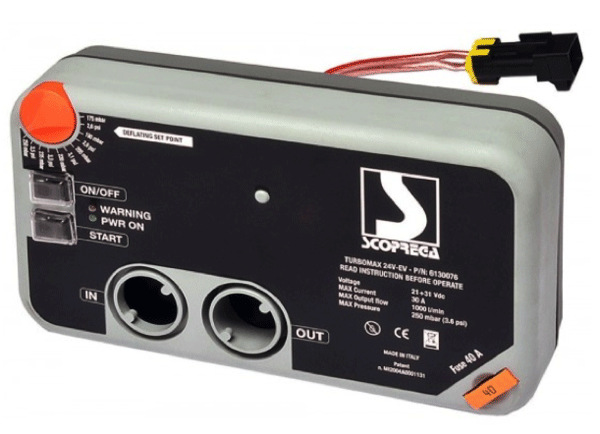

The unit has an integrated digital driver developed with DSP and MOSFET technologies controlled by a microprocessor.
The TURBOMAX has two powerful motors that allow large flow rates and turn off automatically once the set pressure is reached.
– The Turbomax KIT is available for both 12V and 24V versions.
– The power cable is 0,5 m long and has a 100 A CONNECTOR cabled.
– Integrated LED control system.
– Hose is not included, so Turbo Max Console Kit Hose & Fittings is required sku 502244 ( this come with all connectors & 2.8M hose), if just a longer length of hose is required 5 Metres order sku 502298 + any Inflate adaptor required, also available waterproof deck mounted hatch locker with clear hatch sku 502242 ( so inflator can be installed inside to protect from spray & dirt)

Click on related products below to view Hose & Fittings, 5 Metre Hose, Watertight Box, Inflate Aadaptors ( a hose reducer sku 502240 is required to fit inflate adaptors) etc

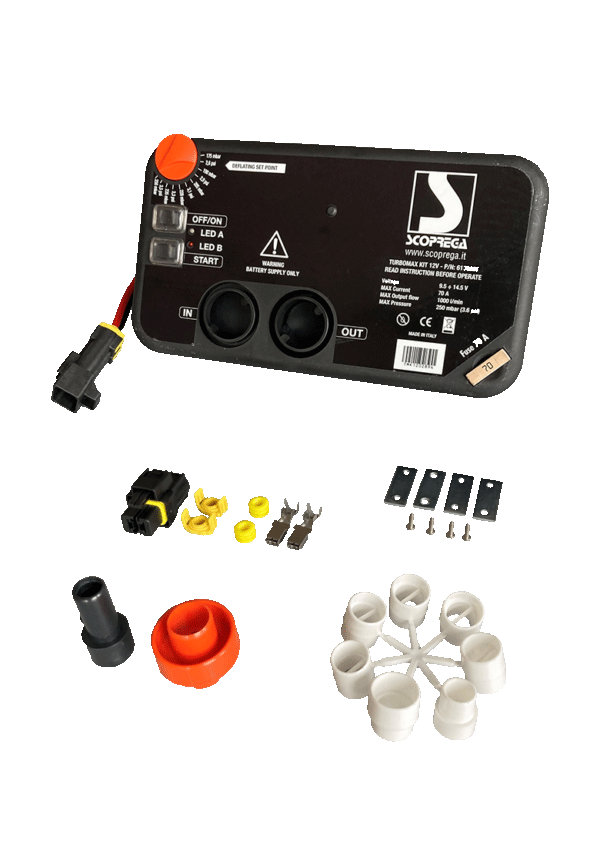

INCLUDED IN THE BOX:
– Valve fittings
– Mounting brackets and electrical connectors

Max Pressure: 250 mbar (3.6 psi)
Max. air Flow: 1000 l/m
Voltage range: 9 ÷ 16 V
Max. Current: 45-60 A
Weight: 2,6 Kg
Function: Inflate and deflate
Suitable for: RIBs, dinghies, tenders

Click on related products below to view Hose & Fittings, 5 Metre Hose, Watertight Box, Inflate Aadaptors ( a hose reducer p/n 502240 is required to fit inflate adaptors) etc
