31:Bravo PCS Pressure Control System 240V Waterproof IP65 Automatic Refilling System Max 6.5psi

29:Bravo GE1800 EL 230v – GE7S0000
Bravo 230/2000 IP 65 240V Waterproof Refilling System Max 6.5psi

£1,299.00 Inc VAT (£1,082.50 ex VAT)

Bravo 230/2000 ARS IP 65 240V Waterproof Automatic Refilling System is a fully automatic inflation/deflation system for Large Inflatable Air Structures.

It requires 2 x Inflation Valves in the Inflatable Structure.

One Inflation Valve is connected to the Pressure Sensor Hose & the other to the Inflation Hose.

Therefore if the pressure drops below the min setting, the pump automatically cuts in and inflates to the max setting.

A Pressure range can be set via the digital display (0.7 to 6.5 PSI)

Power Cord length is 3 metres and is fitted with a two pin plug, so requires a 13amp Shaver Style Plug

Output: 2500 litre/min

Weight 10KG

Requires the following:
Pressure Hose P/N 502259
Inflation Hose P/N 502236 or 502301
Hose Clip P/N 502260
Pressure Sensor P/N 502261 or 502262
Inflate Adaptor P/N various

See related products below

* Supplied to order, allow 4 weeks delivery, call for confirmed delivery date. *

Availability: Available on back-order SKU: 502312 Categories: , , ,

Description

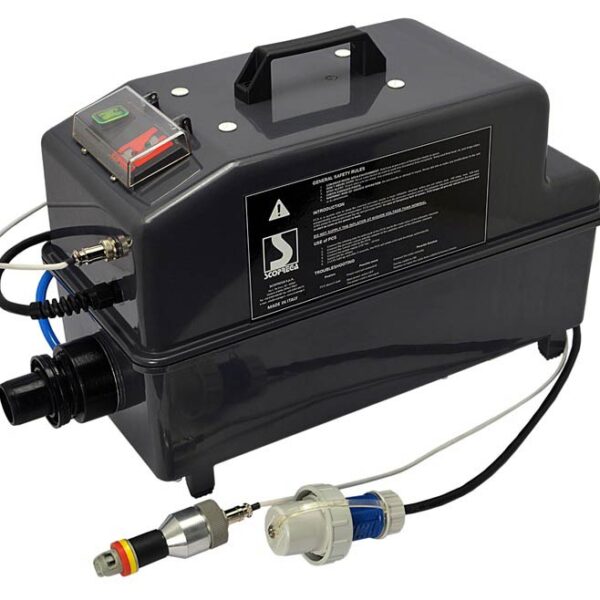

Bravo PCS Pressure Control System 240V Waterproof IP65 Automatic Refilling System is a fully automatic inflation/deflation system for Large Inflatable Air Structures.

It requires 2 x Inflation Valves in the Inflatable Structure.

One Inflation Valve is connected to the Pressure Sensor Hose & the other to the Inflation Hose.

Therefore if the pressure drops below the min setting, the pump automatically cuts in and inflates to the max setting.

Pressure range can be factory set  (1.30 PSI to 6.5 PSI) 90 mbar – 450 mbar

Output: 2800 litre/min

Sizes: 70cm x 25cm x 35cm Weight 16KG

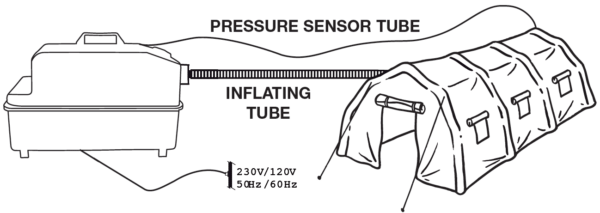

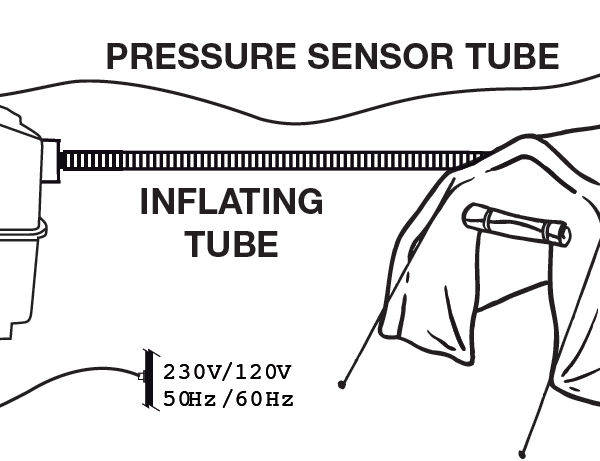

The Inflatable Air Structure requires 2 x Valves to be installed. One Valve monitors the pressure via the Pressure Sensor Cable and the other Valve is for Inflation/Deflation.

We recommend the Bravo 2005 Valve (500126) or the Halkey Roberts Valve (809887) as the Pressure Sensor Valves and the Bravo 260 H.V. (500141) as the Inflation/Deflation Valve.

Also required are the following : Pressure Sensor P/N 502261 or 502262 which connects the Pressure Sensor Cable to the Valves, Hose 502236 or 502301 sold by the metre, Hose Clips x 2 (502302), Bravo 260 H.V. Inflate adaptor (502315) & Valve Tools if required.

See related products below.

Pressure Sensor Cable length 10 metres

Protection degree IP65 according to IEC standard 60529

* Supplied to order, allow 4 weeks delivery, call for confirmed delivery date *

Additional information

Weight 16 kg
