Bravo GE 1800 ARS

Description

Bravo GE 1800 ARS

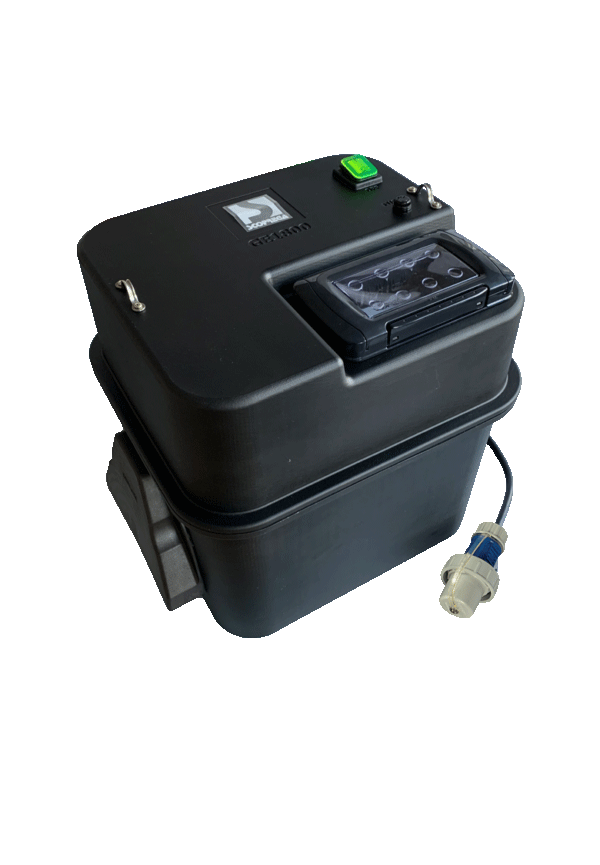

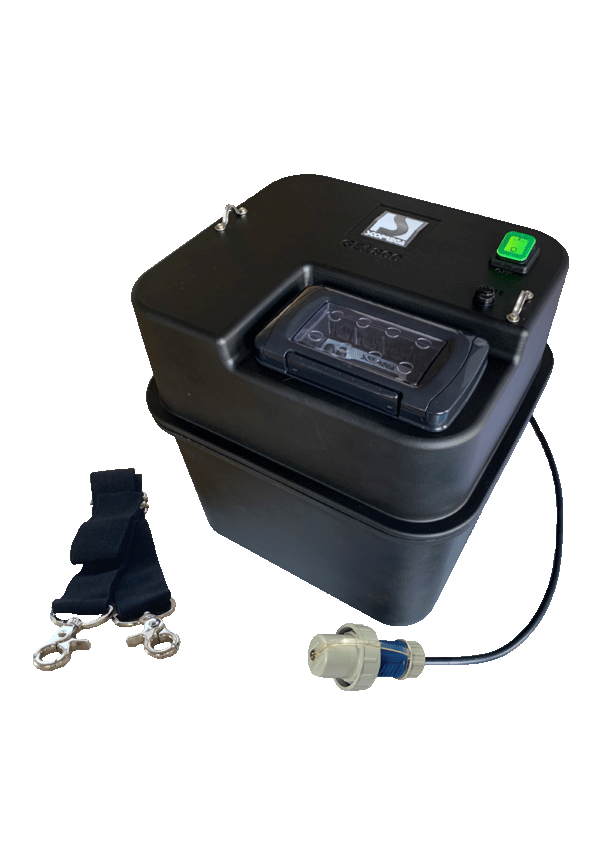

The Bravo GE 1800ARS ( Automatic Refilling System ) is an all weather Inflator with Protection degree: IP66.

It is suitable for large Inflatable Structures

It requires 2 x Inflation Valves in the Inflatable Structure.

One Inflation Valve is connected to the Pressure Sensor Hose & the other to the Inflation Hose.

Therefore if the pressure drops below the min setting, the pump automatically cuts in and inflates to the max setting.

Thanks to the Automatic Refilling System A.R.S. the Inflator is able to keep the nominal pressure inside the Inflatable Structure within pre-set values, independently from ambient temperatures.

The Pump constantly monitors any pressure variations within the Inflatable Structure, and regulates the operation to ensure pressure fill-up and pressure relief through the pneumatic sensor.

Flow: 2700 l/min

Max Pressure 360 +or- 30 mbar

Function mode: Inflate/Deflate

Voltage: 230/120 Vac -50/60 Hz

Max current: 9-16 A

Dimensions: 300mm x 250mm x 300mm

Weight: 6.5KG

Protection degree: IP66

Suitable for: Tents & Large Inflatable Structures

Available from: March 2023

See related products below: Hoses, adaptors etc

Additional information

Weight	7 kg
